Double Group CNC Drilling Machine

Qingdao SOSN Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of double group cnc drilling machine in China. Please feel free to buy CE approved double group cnc drilling machine for sale here from our factory. Quality products and reasonable price are available.

Product descriptions from the supplier









Overview

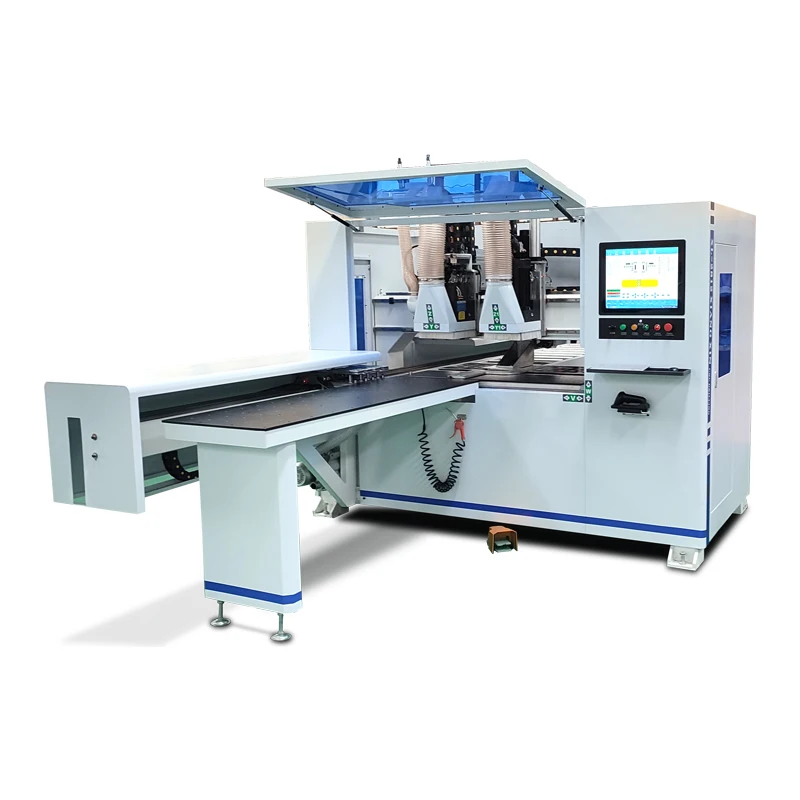

Automatic Six Sides CNC Drilling Center

It consists of customer dismantling software and our company's automatic CNC drilling and grooving machine, instead of manual row
drilling and grooving. This machine adopts full
data processing mode, and optimizes the processing with customer software data, so that its parts can be processed normally on the
equipment. The machine adopts the scanning bar code processing mode, which does not need manual calculation and works according to
the diagram. It is easy to operate, stable, high efficiency, safe, high precision and long service life.

Product Paramenters

Working sides	6 side
Drilling group number	upper:2 ( one left, one right) bottom:1
Horizontal drill No. Of upper left drilling	4
Vertical drill No. Of upper left drilling	7
Horizontal drill No. Of upper right drilling	4
Vertical drill No. Of upper right drilling	7
Vertical drill No. Of bottom drilling	6
power of drilling group	2.2kw*3
X axis	144M/min
Y axis	90M/min
Z axis	30M/min
U axis	144M/min
V axis	90M/min
W axis	30M/min
A axis	67.5M/min
Y1 axis	90M/min
Z1 axis	30M/min
Spindle of upper/bottom	ER20
Diameter of shaft	1/2mm
Spindle motor power	2.2kw+2.2kw
Spindle speed	18000prm/9000prm
Panel working width	40mm-1200mm
Panel working length	≥200mm
Panel working thickness(max)	45mm
Worktable height	930mm
Total power	28.2KW
voltage	380V 50HZ
Working pressure	0.8-1Mpa
Weight	3000KG
Machine size	4790*2280*1860mm
Packing size	1900*650*570mm 4900*500*320 2580*1300*2300mm

1) Both the conventional production process and the invisible parts process can be processed on one 2) side and multiple sides at a time with high accuracy and speed; 3) It can scan codes in batches and automatically queue for processing; you can choose before and after forward and backward; 4) Can be connected to a fully automatic production line; 5) Can be processed simultaneously on both top and bottom; 6) Intelligent floating clamp intelligent avoidance, both large and small plates can be processed, and the clamp feeding speed can reach 130m / min; 7) Floating bead countertops can effectively protect the surface of the board and make board loading easier; 8) Can be used for profile cutting and glass door milling;Computer operation, CAD drawing, CAM import, can directly import open data formats such as DXF, MPR / XML, and easy to operate. It can be connected with well-known domestic and foreign design splitting software such as American CV, French Topsolid, Hisun, Sanweijia, Yunxi, 1010, etc.

1) It is mainly used for drilling and grooving of panel furniture. It can process common panel furniture two-in-one and three-in-one connector installation hole positions, and has the function of processing some types of invisible connectors. At the same time, it can realize panel slotting, Milling, standard plates and special-shaped plates can be processed;

2) The machine automatically recognizes the plate information by wirelessly scanning the plate labels, and once positioned, it can automatically feed and automatically process all hole positions and slots, without the need for flipping operations.

3) High precision and fast speed, no need to adjust the machine for processing various boards, simple operation, especially suitable for custom furniture production and processing;

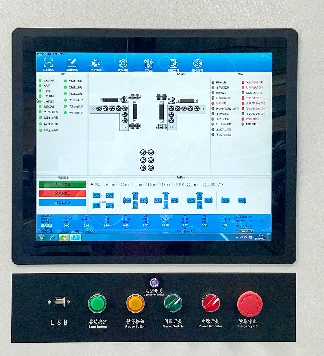

Industrial computer, PLC control

Automatic scanning code

Air floating working table

Pneumatic gripper, two group, easy for feeding

Drilling/milling unit, high precision

Drilling group from Taiwan

Company Profile

Qingdao Sosns International Trading Company

We are a woodworking machinery manufaturer specializing in the research and development, production, sales and service of CNC routers, push panel saws, edge banding machines, and computerized bundle saws. We have also obtained CE and SGS certificates. Best-selling worldwide. We have experienced staff ready to discuss your needs and ensure complete customer satisfaction. Feel free to discuss your purchasing requirements with us anytime.

Production Line

Exhibition

Certifications

Cooperative

Transportation & Packaging

Good comments from buyers



Q1.How to get the most suitable machine and best price. Please tell us the material you want to working on ? How to working on it ? Engraving ? Cutting ? Or other ? What's the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.If we donot know how to use the machine,can you teach us? Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets, hotel and meal.

Q3.Can you promise to deliver the machine in time? Yes,we can.

Q4.How about your guarantee period? One year ,three months for core components, such as motors. If you have any questions during this time,we will solve it for free.
