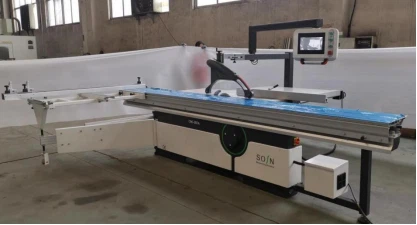

sliding table panel saw

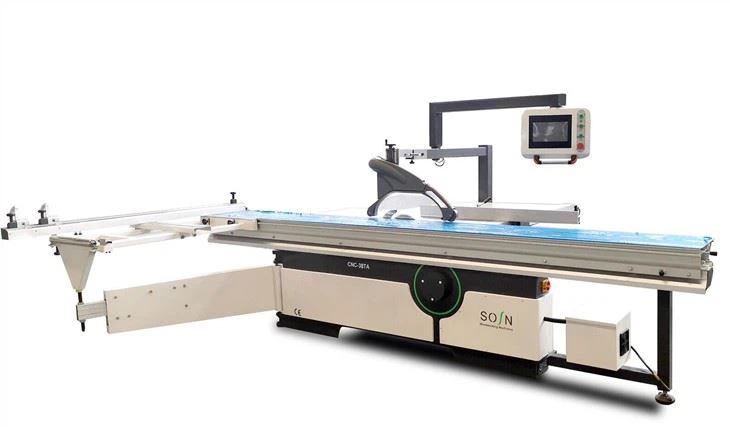

CNC-32TA
3800mm capacity -- The essence of technology and design.
Key function:
The CNC rip fence applies the high-precision five-point recirculating ball spindle system needs little maintenance and, along with the motor, is well protected by its integration into the aluminium profile.
Technical details:
Sliding table panel saw worktable | 3800*410mm |
Capacity of cross cut ruler | 3800mm |
Capacity of rip fence | 1250mm |
Sawing disc capacity | 300(250-400)mm |
Thickness of cutting (300mm) | 75mm |
Thickness of cutting of 300mm at 45 degree | 55mm |
Main saw disc speed | 4500/6000rpm |
Main spindle diameter | 30mm |
Tilting saw blade | 0-45 and 90 degree |
Main saw unit motor | 5.5kw |
Scoring cutting unit | 120mm |
Scoring disc speed | 7000-8000rpm/min |
Scoring unit spindle | 20mm |
Scoring saw unit motor | 1.1kw |
G.W. | 1200kg |
Packing size | 2200*1150*1100mm 3950*480*320mm |
An overview of the CNC-32TA key features.
1. Sliding table panel saw cutting system:
Equip with Freud saw blade, adopt linear rail structure,
Motor rating 5.5 kW (7.5 HP)
The bigger motors provide up more torque than conventional electric motors without increasing power consumption.
2. European push table, table width 410mm
The guide rail is a plated round rod structure with high positioning accuracy.
Made of high-strength extruded aluminum alloy, with high strength and no deformation; the surface is oxidized, beautiful and wear-resistant.
Additional: CNC crosscut fence
The cross cut ruler, with integral length compensation, makes it easier to perform bevel cuts and mitre cuts precisely in one function. The angle tilting can be adjusted continuously over a range of 49° with a graduated scale.

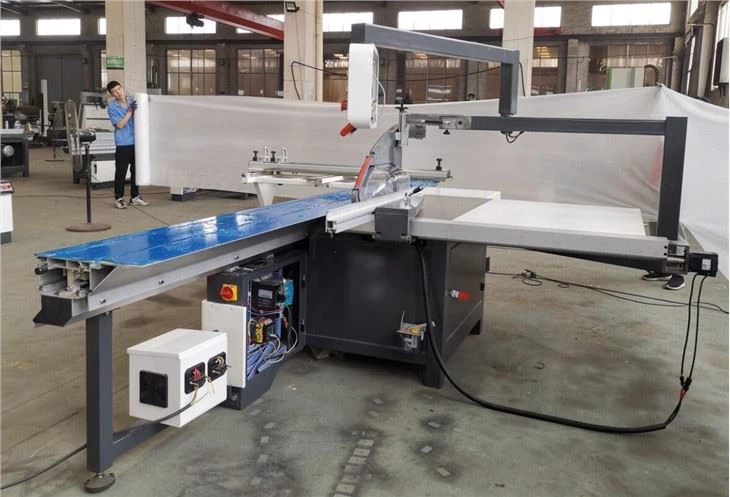

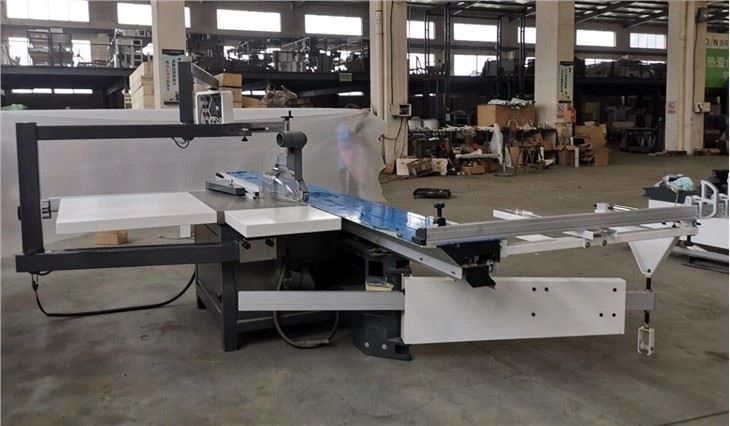

sliding table panel saw under production:
Qingdao Sosn Machinery is a manufacturer of woodworking machines.
We offer one-step machines solution.
Main products: CNC beam saw, cnc router, edge banding machine, sanding machine, drilling machine, dust collectors etc.
Would like to be in your service.
Why choose us?
- Our Table Panel Saw products are designed to offer efficiency, accuracy, and precision in cutting and shaping wood.
- Our strong technical force and new product R & D capabilities ensure that we can develop Sliding Table Panel Saw suitable for customer requirements in a short period of time.
- As a leading Table Panel Saw manufacturer and supplier, we are dedicated to offering our clients the best products and services.
- We always strive to reach the domestic leading and international advanced level in the field of product production and realize the goal of No.1 market share in the industry.
- We strive to maintain superior customer service by offering prompt assistance with all Table Panel Saw product inquiries and concerns.
- Our innovative changes are manifested in all aspects of technology, management, mechanism and philosophy.
- Our factory is a supplier and manufacturer of Table Panel Saw products, and we offer incredibly competitive prices.
- We are upright, honest, hardworking and hardy, with good professional ethical qualities.
- We offer a wide range of Table Panel Saw products to suit different customer needs and preferences.
- We guarantee and safeguard the interests of customers, at the same time, do a good job in the pre-sale and after-sales work earnestly and enthusiastically, so that customers can feel the sincere service of all our staff while using the products at ease.
