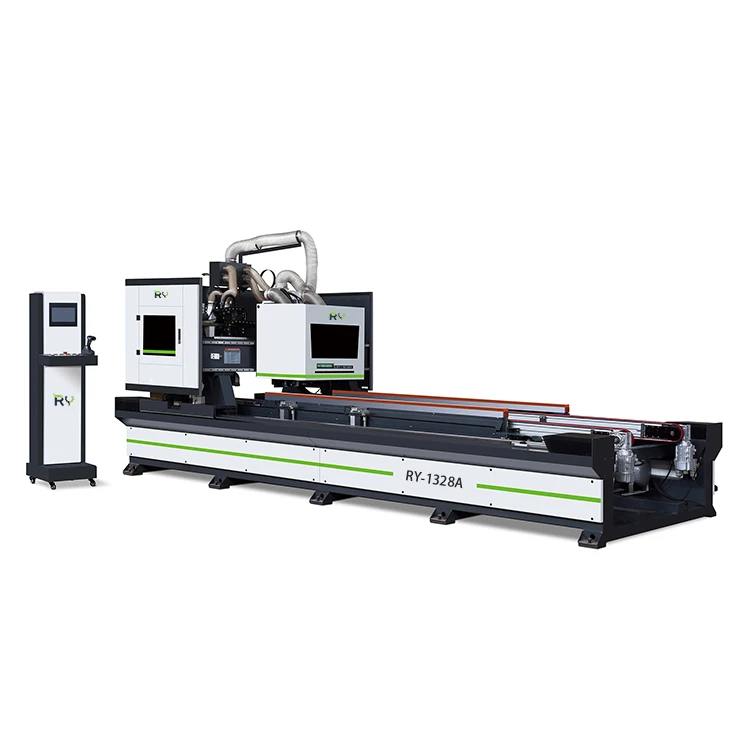

High Qualtly PTP Woodworking Boring Center

Qingdao SOSN Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of high qualtly ptp woodworking boring center in China. Please feel free to buy CE approved high qualtly ptp woodworking boring center for sale here from our factory. Quality products and reasonable price are available.

1. Production introduction：

We offer PTP woodworking boring center with carousel type tool magazine and drilling various solutions. Machine can be customized depending on customer production requirements. The machine has high finish quality and heavy duty profiling.

2. Product parameter:

3. Product feature and application:

Application :

It is suitable for processing various shapes and complex wood furniture.

It can realize cutting, engraving, side milling and other functions. Greatly improved the efficiency of processing solid wood.

Feature:

PTP woodworking boring center is designed to meet diverse complicated processing requirements, It is highly versatile with routing, drilling, cutting, side milling, sawing, slotting and other functions.

4. Product details :

1) High Version Taiwan Syntec system, easy to learn and operate.

2) 12 vertical+4 horizontal+1 sawing units

3)Use Taiwan good brand CSK high precision rail and YYC rack.

4)Heavy duty profiling, machine body with annealing for precision and stability.

5)Finished furniture sample

6)You will also see SOSN in the exhibition all around the world.

7)Company introduction

As a fast growing enterprise, SOSN have the whole world in view, and try to be better and better.

Competitive price, good quality and regular supply are the main points what they can promise to the customers. Win-win with customers at home and abroad.

8)Machine in the factory

Product descriptions from the supplier









Overview





CNC Automatic Door Cutting Machine

1. high cutting precision;Suitable for door panel cutting of different specifications and sizes 2. Small footprint and space saving; 3. Automatic scanning of the code, no need to input the size, the machine automatically cuts through the barcode on the identification label; 4. Three cutting methods: A. manual input, B. Make a document, and retrieve stored data C. Automatic scanning of the code, automatic cycle cutting, for example, there are 20 types of door panels, cut any quantity of each type , as long as the automatic mode is turned on, the machine will be processed in the order and quantity you set, after the processing then automatically stop.

Product Paramenters

Travel size	1300*2800*150mm
Work table size	1300*2800mm
Max cutting length	2700mm
Max cutting width	1200mm
Max cutting thickness	65mm
Table structure	Moveable gantry
Drive type	Rack and pinion
Motor power	5.5kw*3+1.1kw*3
Packing size of loading robot arm	1320*1000*30mm 2750*43*35mm
Gear rack	Taiwan alloy hard tooth face helical rack + alloy hard tooth face helical gear
Speed of main saw	4500-4600rpm
Speed of scoring saw	7000-9000 rpm
Max working speed	25m/min
Diameter of scoring saw blade	120mm
Diameter of main saw blade	300mm
Driving system	Servo motor
Weight	4500kg
Control system	Taiwan Fatek
Overall size	5500*2300*2300mm













Why choose us?

• We understand that every customer's needs are different, and we work closely with them to deliver personalized solutions.
• According to our own development requirements, we still have a comprehensive improvement space.
• Our factory is equipped with the latest technology and modern equipment to ensure top-quality products.
• Choosing our company is to choose high quality, high quality, we take good quality PTP Woodworking Boring Center, excellent technology, sincere service to protect you.
• Our team consists of experienced professionals dedicated to providing exceptional customer service and support.
• We take the scientific concept of development and the scientific concept of talent as our guide to cultivate and attract more outstanding talents.
• We provide comprehensive training and support to ensure customers can get the most out of our products.
• We serve customers with heart, and insist on impressing customers with our own services.
• We take pride in our commitment to sustainability, using environmentally friendly materials and practices wherever possible.
• Our goal is to let every customer enjoy value-added service.
